Pitch 13.00mm 600V 40A 2 - 12P Barrier Terminal Block Power Terminal Block

Name: Pitch 1300mm 600V 40A 2 12P Barrier Terminal Block Power Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE, CQC

Model Number : TB1300-00V-C

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

Pitch 13.00mm 600V 40A 2 - 12P Barrier Terminal Block Power Terminal Block

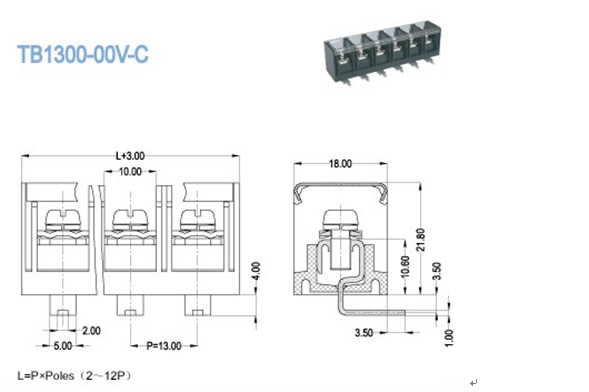

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 40	600 / 40	600 / 5
Wire Range AWG	20-8	20-8	20-8
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 40	1000 / 40	1000 / 40
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ2.5
Stripping Length mm	10-11
Screw / Torque / lbf.in	M 4 / 10.6-13

Pitch 13.00mm 600V 40A 2 - 12P Barrier Terminal Block Power Terminal Block

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Pitch 13.00mm 600V 40A 2 - 12P Barrier Terminal Block Power Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
