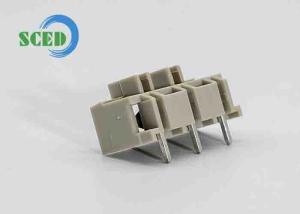

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block

  • 1
  • 2

Brand Name : SCED

Model Number : TP508H-75V-GY

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Terminal : Brass

Plastic : PA66

Inflammability Class : UL94-V0

Servise : OEM ODM

Rated Currennt : 18A

Rated Voltage : 300V

Plating : Tin plated

Contact Now

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block

■Single Level; □Double Levels; □Triple Levels

This part is design for modular housing, for further information, please contact us and we will response you very quickly.

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18 300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 500 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm 1.4
Pin Dimension mm 1.0*1.0

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

300V 18A Header Male Sockets Pitch 7.50mm 2-16P Sockets Plug-in Terminal Block
